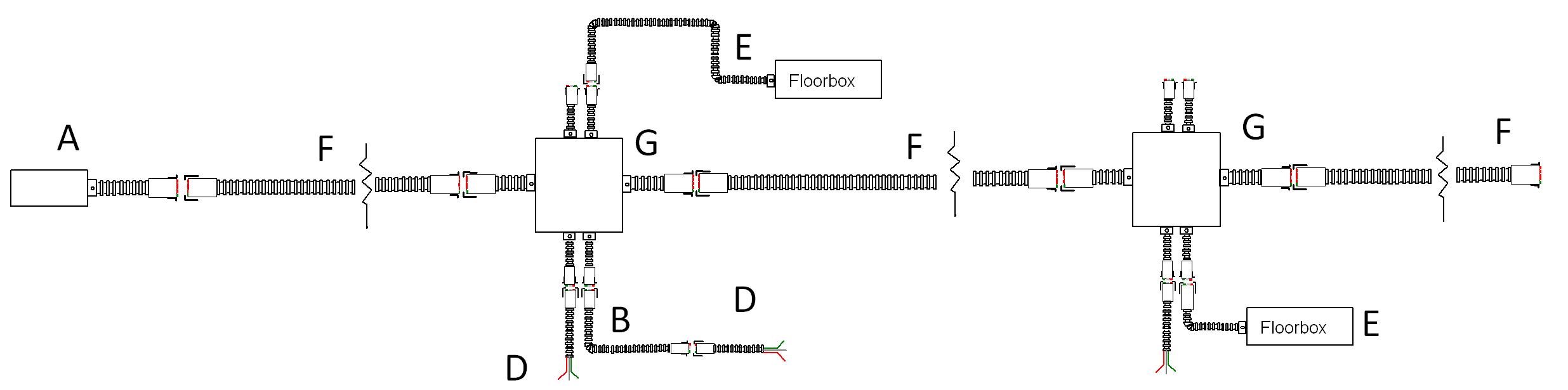

Power Solution

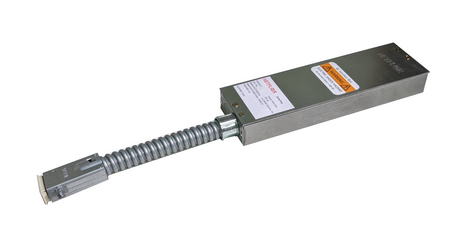

 ZPE-4C

12 AWG(3.3mm²)*10 wire whip in junction box for 4 circuit connection. 4 Circuit connector*1 to start ZoneTeq modular wiring system.

 Item Number

Description

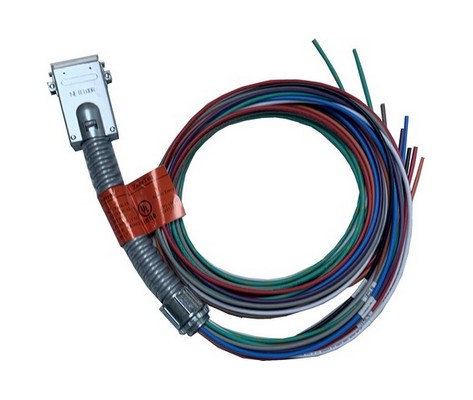

ZPJ-10PFE

Jumper female plug with 1.6M(4.9') L free-end, 3/4" fitting for Breaker box. (12 AWG(3.3mm²) wire*10 )

 Item Number

  Description

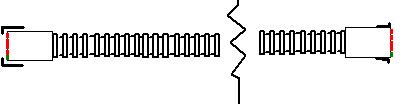

 ZPJ-10P03

 4 Circuit Jumper 1.04M(3.4') for extention use

 ZPJ-10P06

 4 Circuit Jumper 1.68M (5.4') for extention use

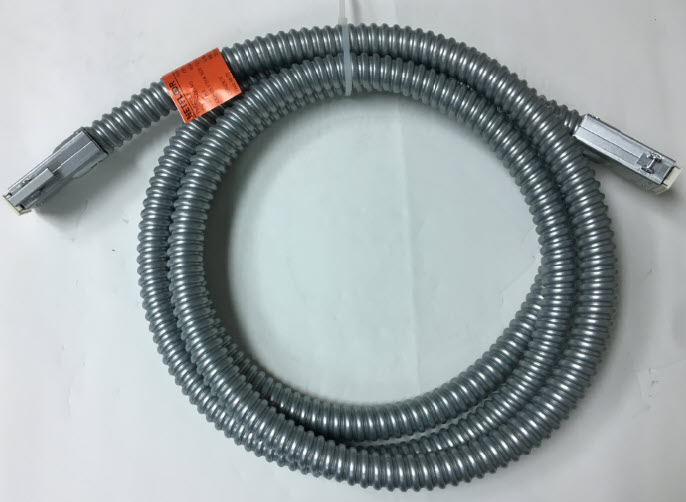

 ZPJ-10P12

 4 Circuit Jumper 3.49M(11.3') for extention use

 ZPJ-10P20

 4 Circuit Jumper 5.89M(19.2') for extention use

 Item Number

Description

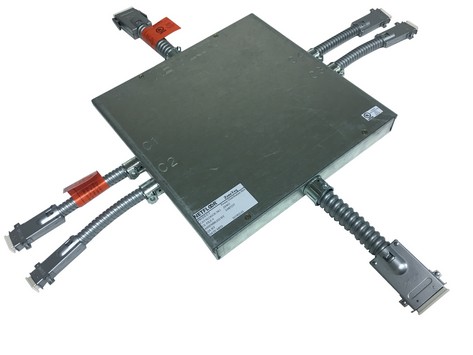

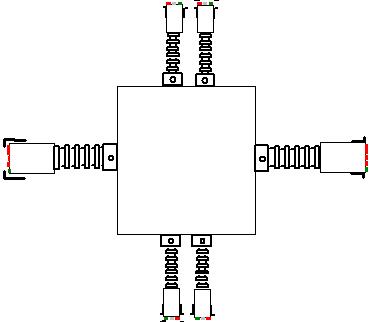

ZP401

4-circuit power distribution box, two male/female whips(4 circuit) at two sides of box to extend 4 circuit, four female whips(1 circuit) at two other sides for each circuit.

 Item Number

 Description

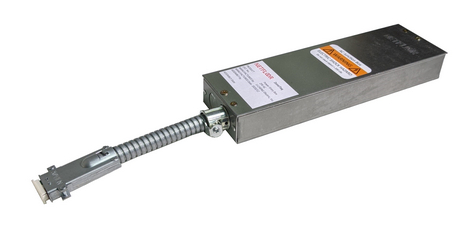

 ZPE-1C

12 AWG(3.3mm²)*3 wire whip in junction box for 1 circuit connection. 1 Circuit connector to start ZoneTeq modular wiring system.

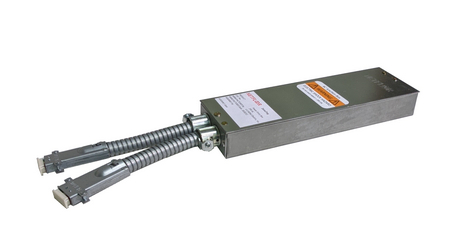

12 AWG(3.3mm²)*6 wire whip in junction box for 2 circuit connection. 1 Circuit connector *2 to start ZoneTeq modular wiring system.

 Item Number

Description

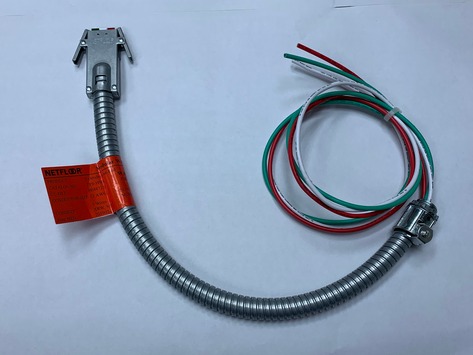

ZPJ-3PFE

Jumper female plug with 1.6M(4.9') L free-end, 1/2" fitting for Breaker box...etc. (12 AWG(3.3mm²) wire*3 )

 Item Number

Description

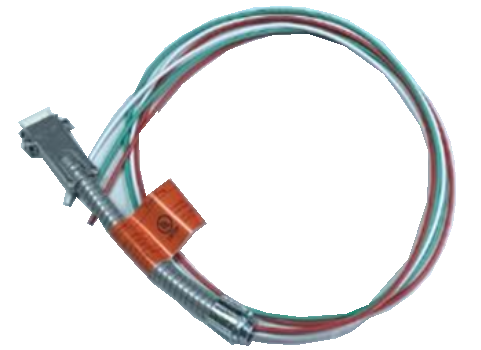

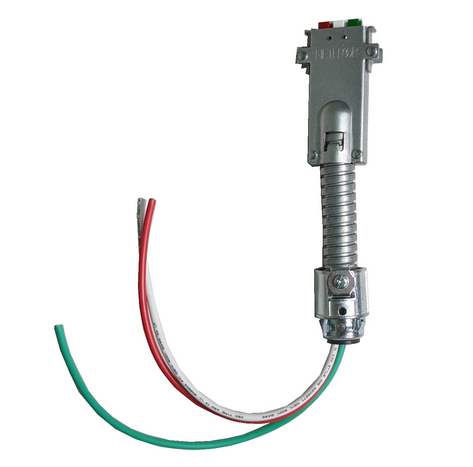

ZPJ-3PFE-F0608

Jumper female plug with 20CM(8") L free-end, 1/2" fitting for extention use to all type of junction boxes(12 AWG(3.3mm²) wire*3 )

 Item Number

 Description

 ZPJ-3P06

 1 Circuit Jumper 1.68M(5.4') for extention use. (12 AWG(3.3mm²) wire*3 )

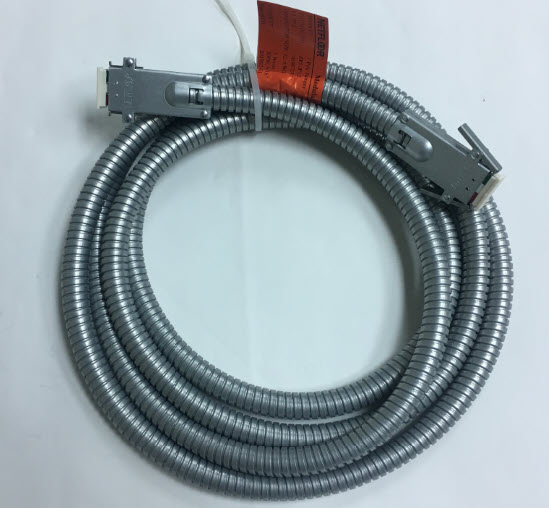

 ZPJ-3P12

 1 Circuit Jumper 3.49M(11.3') for extention use. (12 AWG(3.3mm²) wire*3 )

 Item Number

 Description

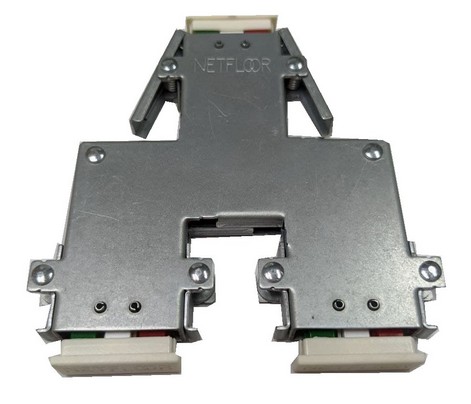

ZPS402

Split 1 male connector in to 2 female connector in 1 circuit for more electrical point.

 Item Number

Description

ZPJ-3PFE-F0608

Jumper female plug with 1M(3.28') L free-end, 1/2" fitting for custummize use. (12 AWG(3.3mm²) wire*3 )

 Item Number

  Description

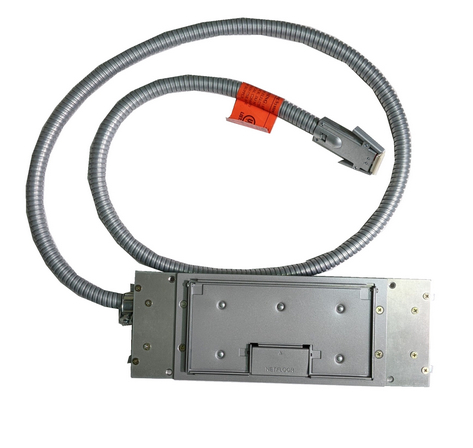

SE403EX

• Box Dimension : 320mm * 115mm * 40mm (1.57”)
• 2 Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

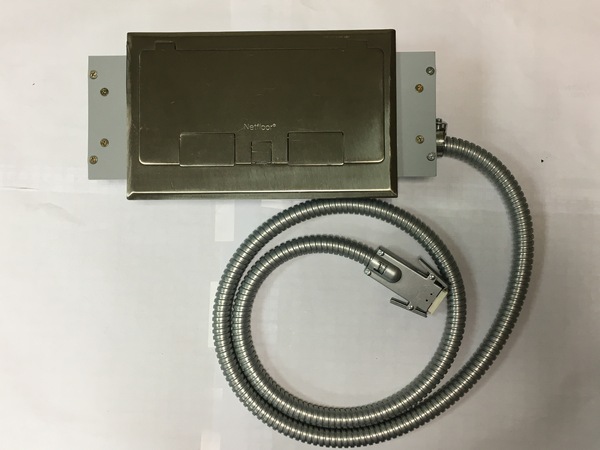

SE603EX, SE603EX-BS,

SE603EX-EC

• Box Dimension : 320mm * 115mm * 60mm (2.36”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

 Item Number

  Description

SS403EX

• Box Dimension : 320mm * 115mm * 40mm (1.57”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M 5.4'L

SS603EX, SS603EX-BS

• Box Dimension : 320mm * 115mm * 60mm (2.36”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

 Item Number

  Description

SS60EX, SS60EX-BS, SS60EX-EC

• Box Dimension : 252mm * 220mm * 60mm (2.36”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

 Item Number

 Description

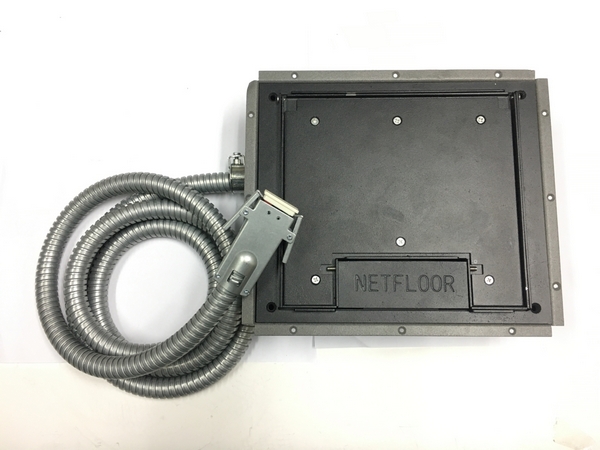

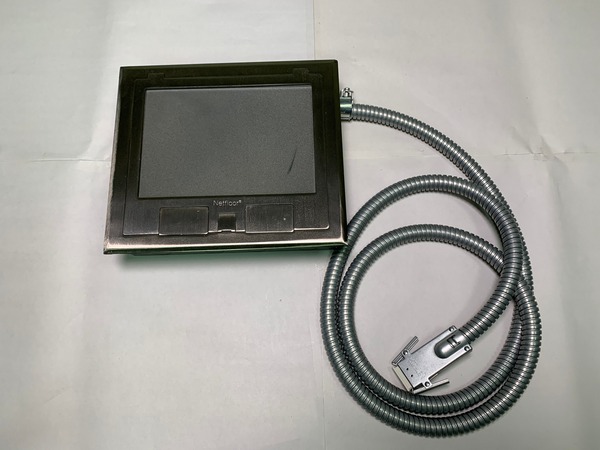

SE60EX, SE60EX-BS, SE60EX-EC

• Box Dimension : 252mm * 220mm * 60mm (2.36”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

 Item Number

  Description

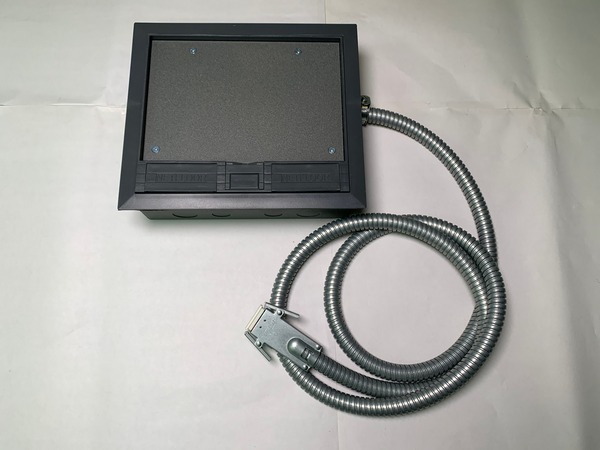

SB75-BS, SB75-EC

• Box Dimension : 252mm * 220mm * 75mm (2.95”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

SB100-BS, SB100-EC

• Box Dimension : 252mm * 220mm * 100mm (3.94”)
• Power Socket : 13A/240V for BS, 16A/250V for EC, 125V 20A for US
• Ports and 86 Type Plate for Data / Voice jack
• 3-port jumper, 1.64M (5.4'L)

 Item Number

  Description

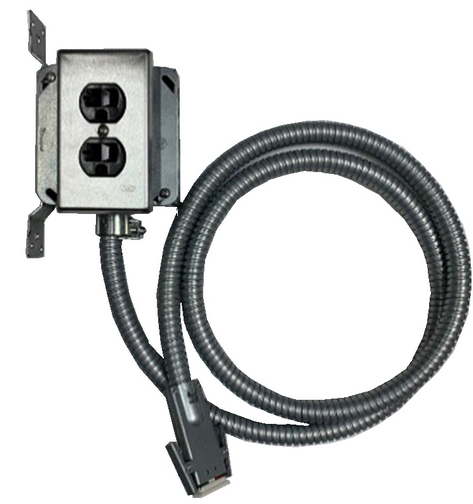

SE403DX, SE403DX-USB

• Box Dimension : 4” * 4” * 1-1/2”
• 2 Power Socket : 125V 20A for US
• 3-port jumper, 1.64M (5.4'L)

 Item Number

  Description

SE403DX-2R

• Box Dimension : 4” * 4” * 1-1/2”
• 2 Gang : 125V 20A for US
• 3-port jumper, 1.64M (5.4'L)
